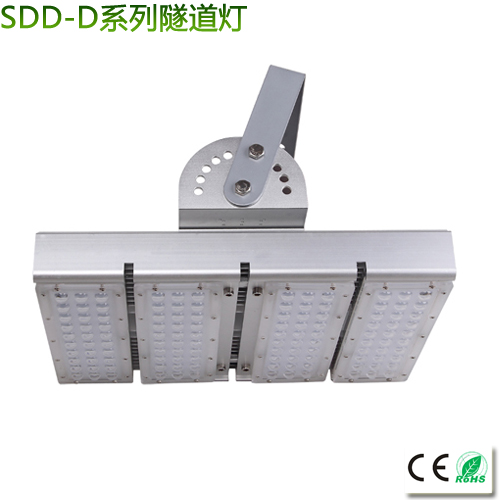

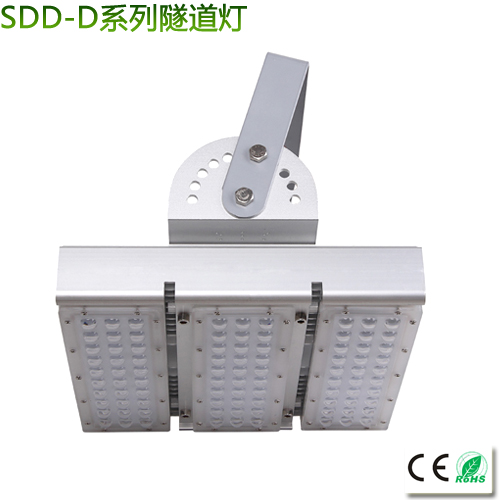

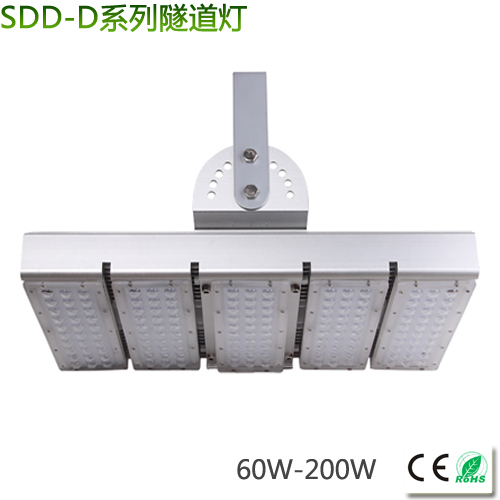

Single module LED Tunnel Light 60-200W
Product Name:
Single module LED Tunnel Light 60-200WModel No.:
MY-SDD-D60-200Brand:
Ming Yang lighting
Product Abstract:
Widely used in highway tunnels, billboards, stadiums, squares, factories, parking, gas stations, toll stations, residential areas, parks and tourist attractions, building facade lighting, and other places of lighting required.
- Product Description

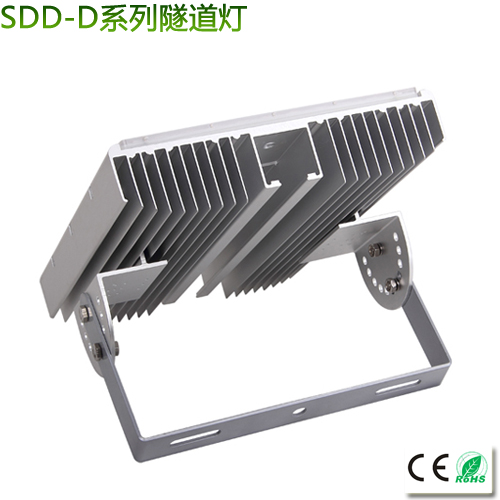

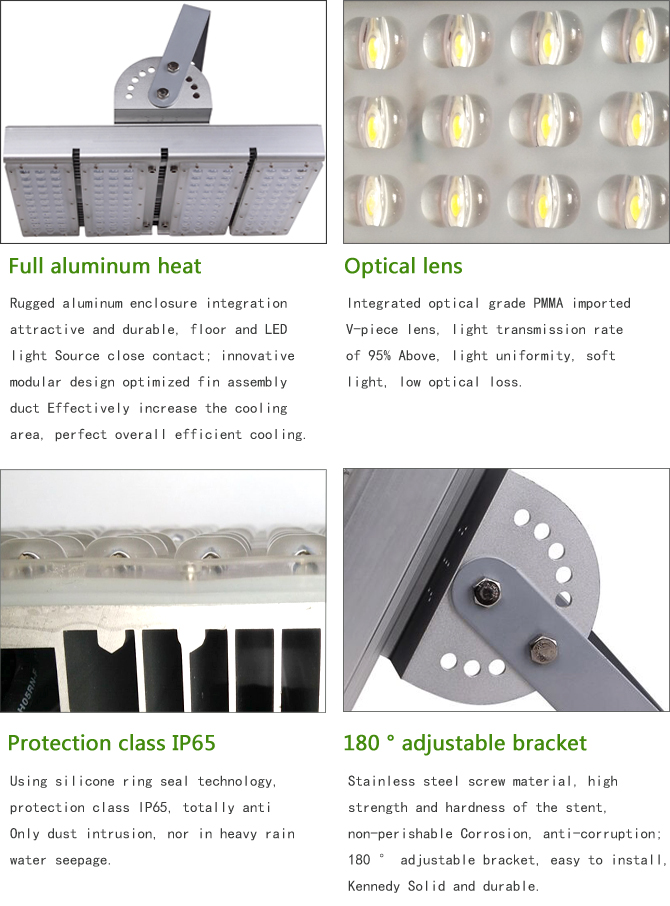

• Full high-purity aluminum, fin set of air convection design, the overall heat dissipation, surface anodized and hardened, strong resistance to corrosion, protection class IP65;
• Integrated PMMA lens, light uniformity, the optical efficiency of 95%, non-glare, high uniformity, 0.5 above;

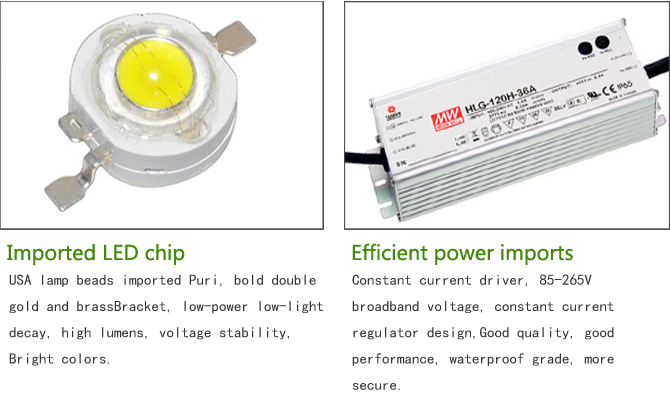

• High-power constant-current drive power, wide voltage input AC85-265V, power efficiency> 90%, power factor> 0.95, harmonic distortion ≤20%;
• imported high lumen chips, enough watt light enough, no flicker, no radiation, low light decay, long life, stable light source, light and soft;
• the entire lighting efficiency 90-110LM / W, light body surface temperature is below 55 ℃, life of 50,000 hours.
Product Model MY-SDD-D60-200 Input Voltage AC85-265V Freqency Range 50HZ-60HZ Power Factor >0.95 Power Efficiency >90% LED Power 60W、80W、90W、120W、150W、180W、200W LED Luminous Efficiency 90-110Lm/W LED Intial Flux 6000-20000LM LEDColor Temperature 3000-3500K/6000-6500K Color Rendring Index Ra>75 Beam Angle 120° LED Power Supply Built-in waterproof drive power Light Design LED lamp beads + PMMA lens with light Shell Material Aviation aluminum + full optical lens
Lamp Size 60W:196X290X232mm 80W:196X290X232mm
90W:277X290X232mm
120W:277X290X232mm
150W:370X290X232mm
180W:451X290X232mm
200W:451X290X232mm
Working Temperature -40°C- +50°C IP Grade IP65 LED Life 50000H Power Cables Brown: L FireWire, blue: N zero line, yellow-green: G Ground

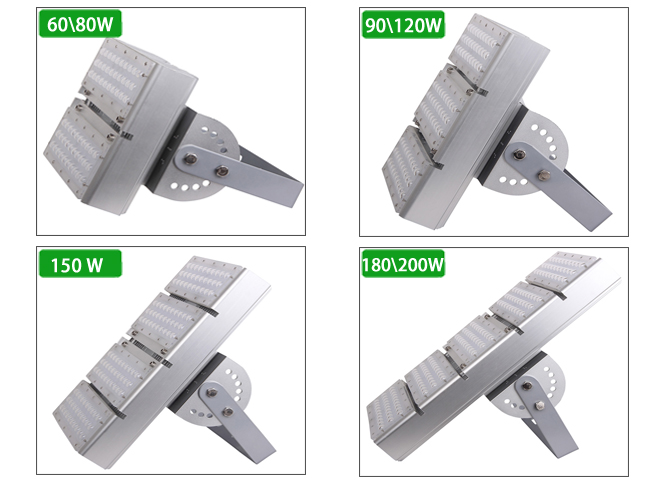

MY-SDD-D60-200 series contain: 60W, 80W, 90W, 120W, 150W, 180W, 200W, choose the right lighting power according to different places.
Applications: Widely used in highway tunnels, billboards, stadiums, squares, factories, parking, gas stations, toll stations, residential areas, parks and tourist attractions, building facade lighting, and other places of lighting required.
