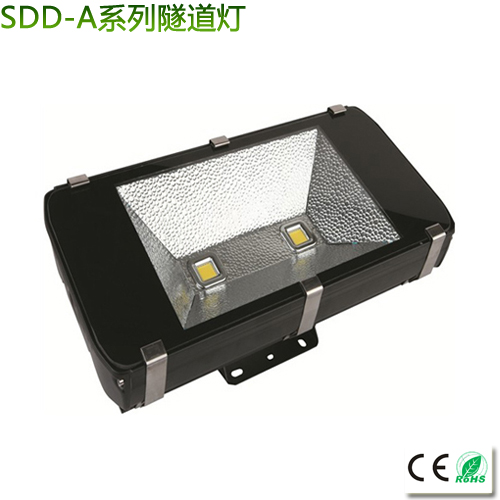

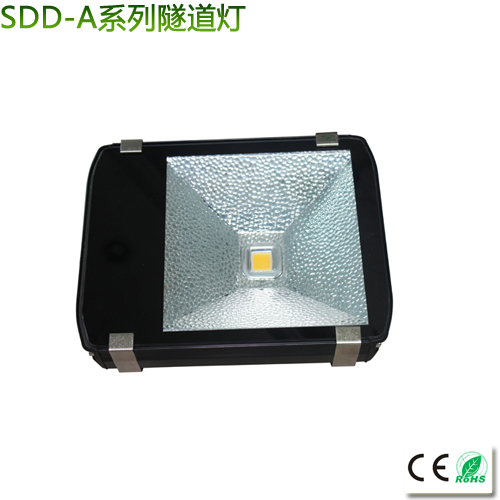

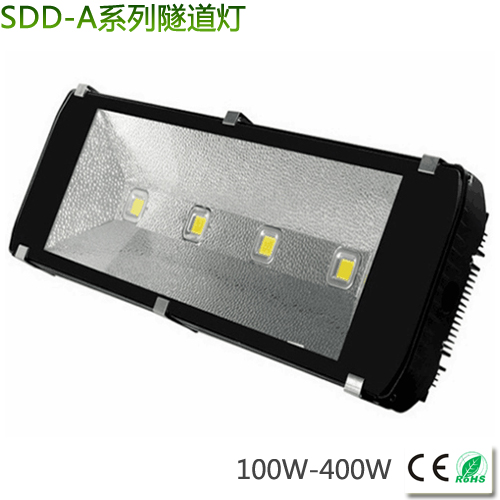

High-power integrated LED Tunnel Light 100w-400W

  • High-power integrated LED Tunnel Light 100w-400W
  • Concentrating power LED Tunnel Light 100w-400W
  • High Power LED Tunnel Light 42-112W flat
  • Single module LED Tunnel Light 60-200W
  • Fin modules LED Tunnel Light 50- 300W

Product Abstract:

Widely used in highway tunnels, billboards, stadiums, squares, factories, parking, gas stations, toll stations, residential areas, parks and tourist attractions, building facade lighting, and other places of lighting required.


Product Description

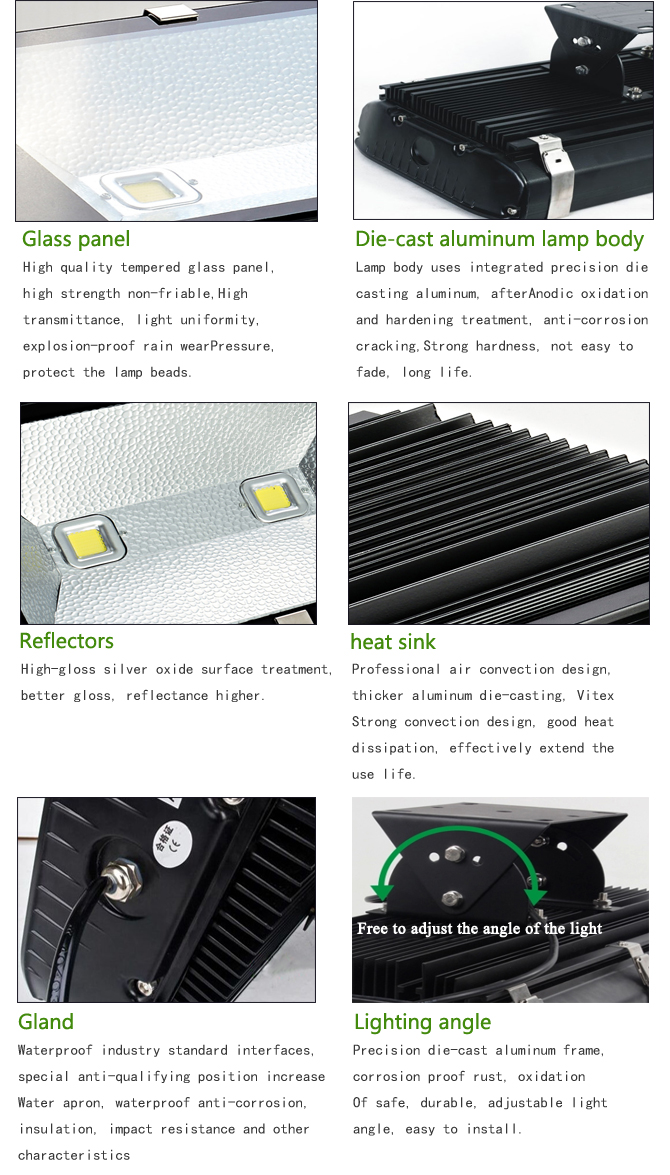

• high thermal conductivity aluminum alloy casting, cooling fins, heat more evenly, the surface anodizing, polishing, sandblasting and other processing, strong resistance to corrosion, never rust;

• High-purity aluminum reflector, reflective effect, glass panels, high-intensity light protection, light transmission rate of 98%, non-glare, high uniformity;

• High-power constant-current drive power, wide voltage input AC85-265V, power efficiency> 90%, power factor> 0.95, harmonic distortion ≤20%;

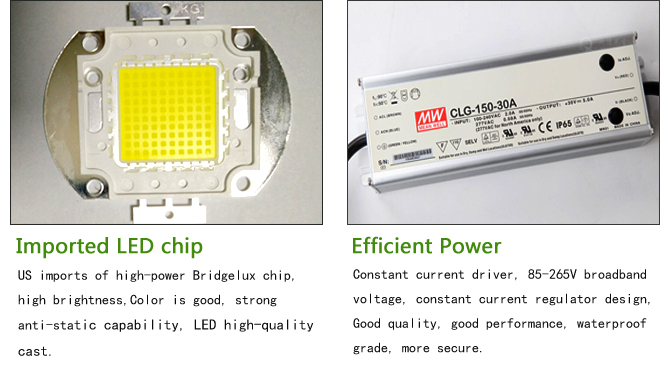

• Imported chip COB package and high lumen LED flip chip as the light source, color rendering index Ra≥75, good heat dissipation, light decay, high brightness, more stable;

• the entire lighting efficiency 90-110LM / W, light body surface temperature is below 55 ℃, life of 50,000 hours.







  Product Model  MY-SDD-A100-400
 Input Voltage  AC85-265V
 Freqency Range  50HZ-60HZ
 Power Factor  >0.95
 Power Efficiency  >90%
  LED Power   100W、200W、300W、400W
  LED Luminous Efficiency  90-110Lm/W
  LED Intial Flux  11000-44000LM
  LEDColor Temperature  3000-3500K/6000-6500K
  Color Rendring Index  Ra>75
  Beam Angle  90°
  LED Power Supply Built-in waterproof drive power
  Light Design  LED lamp beads + high-purity aluminum reflector lose it
  Shell Material  Aviation aluminum + glass
  Lamp Size

 100W:360X285X215mm

 200W:580X285X215mm

 300W:760X285X215mm

 400W:920X285X215mm

  Working Temperature  -40°C- +50°C
  IP Grade  IP65
  LED Life  50000H
  Power Cables  Brown: L FireWire, blue: N zero line, yellow-green: G Ground

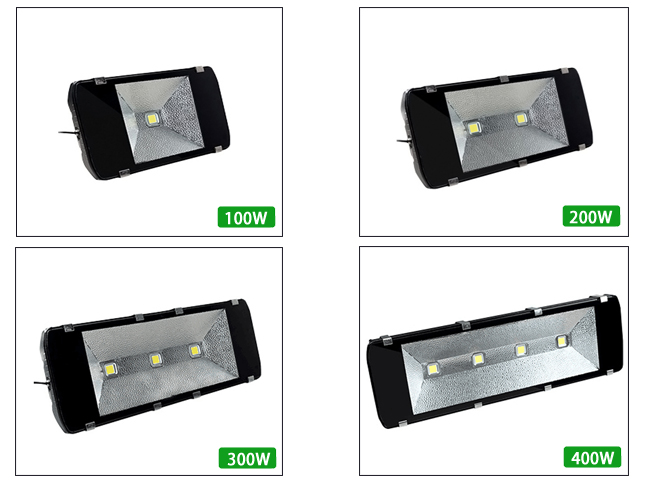

 MY-SDD-A100-400 series contain: 100W, 200W, 300W, 400W, choose the right lighting power according to different places.











Applications: Widely used in highway tunnels, billboards, stadiums, squares, factories, parking, gas stations, toll stations, residential areas, parks and tourist attractions, building facade lighting, and other places of lighting required.
