Concentrating power LED Tunnel Light 100w-400W
Product Name:
Concentrating power LED Tunnel Light 100w-400WModel No.:
MY-SDD-B100-400Brand:
Ming Yang lighting
Product Abstract:
Dongguan Ming Yang Lighting Co., Ltd., specialized in R & D LED tunnel lights, LED tunnel lights for many years the strength of the brand manufacturer, welcome to buy wholesale LED tunnel lights, 100W-400W LED tunnel lights, national service hotline: 0769-81382696
- Product Description

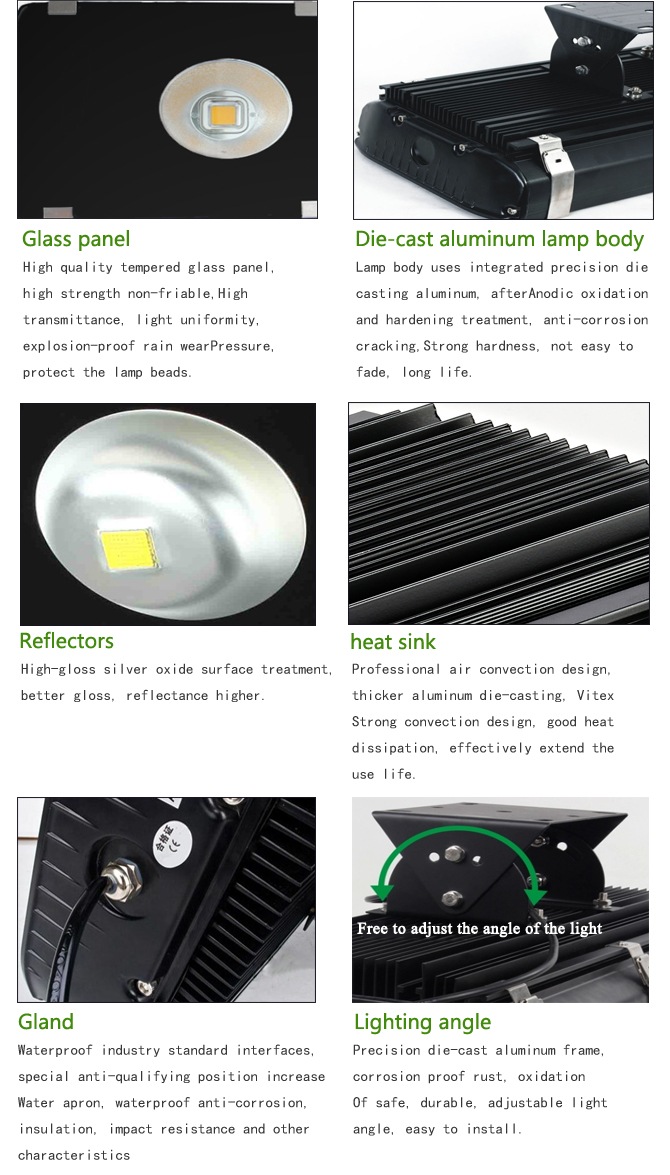

• high thermal conductivity aluminum alloy casting, cooling fins, heat more evenly, the surface anodizing, polishing, sandblasting and other processing, strong resistance to corrosion, never rust;
• High-purity aluminum reflector, reflective effect, glass panels, high-intensity light protection, light transmission rate of 98%, non-glare, high uniformity;
• High-power constant-current drive power, wide voltage input AC85-265V, power efficiency> 90%, power factor> 0.95, harmonic distortion ≤20%;
• Imported chip COB package and high lumen LED flip chip as the light source, color rendering index Ra≥75, good heat dissipation, light decay, high brightness, more stable;
• the entire lighting efficiency 90-110LM / W, light body surface temperature is below 55 ℃, life of 50,000 hours.
Product Model MY-SDD-B100-400 Input Voltage AC85-265V Freqency Range 50HZ-60HZ Power Factor >0.95 Power Efficiency >90% LED Power 100W、200W、300W、400W LED Luminous Efficiency 90-110Lm/W LED Intial Flux 11000-44000LM LEDColor Temperature 3000-3500K/6000-6500K Color Rendring Index Ra>75 Beam Angle 60° LED Power Supply Built-in waterproof drive power Light Design LED lamp beads + high-purity aluminum reflector lose it Shell Material Aviation aluminum + glass Lamp Size 100W:360X285X215mm
200W:580X285X215mm
300W:760X285X215mm
400W:920X285X215mm
Working Temperature -40°C- +50°C IP Grade IP65 LED Life 50000H Power Cables Brown: L FireWire, blue: N zero line, yellow-green: G Ground

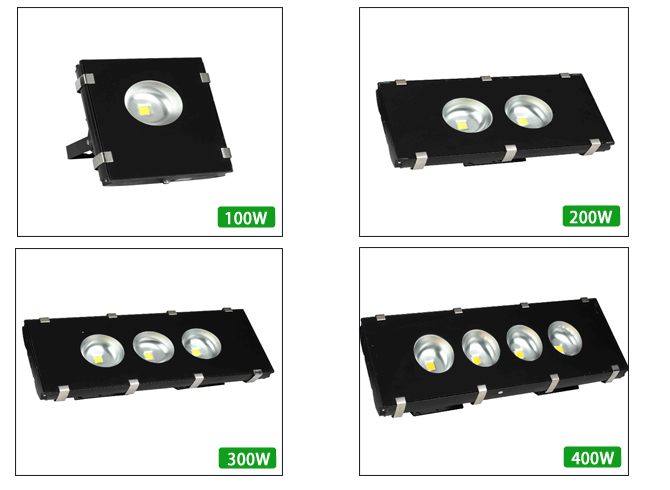

MY-SDD-A100-400 series contain: 100W, 200W, 300W, 400W, choose the right lighting power according to different places.
Applications: Widely used in highway tunnels, billboards, stadiums, squares, factories, parking, gas stations, toll stations, residential areas, parks and tourist attractions, building facade lighting, and other places of lighting required.
