New UFO fin mining lamp 100w-240W

  • High Power LED Bay Light 120-200W
  • LED mining lamp 120-180W
  • Fin heat LED mining lamp 80w-300W
  • Heat pipe cooling LED Bay Light 80-300W
  • Liu fin heat pipe connected LED Bay Light 100w-500W
  • Waterproof LED Bay Light 100w-300W
  • Screw SMD LED mining lamp 20-70W
  • SMD LED Bay Light 20-100W
  • New sunflower LED Bay Light 100w-240W
  • Simple LED mining lamp 30w-50W
  • LED Bay Light 30-100W
  • New UFO disc mining lamp 100w-200W
  • New UFO fin mining lamp 100w-240W
  • Slim UFO UFO mining lamp 50w-100W
  • The new linear mining lamp 50-100W

Product Abstract:

Product Applications / Applications: LED mining lamp lighting for the workshop, factory lighting, warehouse lighting, shopping malls, airports, offices, Takai high shelf, highway toll stations, gas stations, supermarkets, exhibition halls, stadiums and other lighting needs place.


Product Description

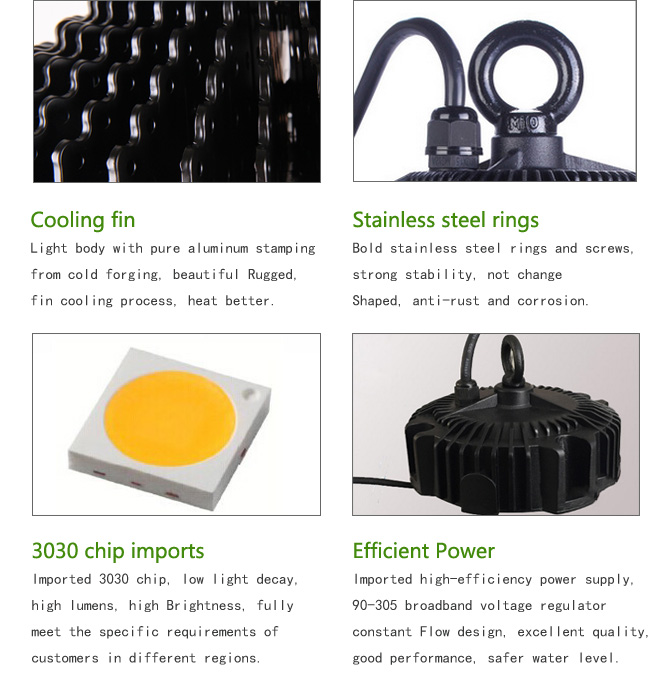

• 1060 pure aluminum lamp body with stamping cold forging, beautiful appearance, resembles a flying saucer UFO, high-grade quality, the structure is very sturdy;

• Unique fin heat sink design, lighting lighter light source and the perfect combination of radiator, effectively guarantee the light source and power of life;

• High transmittance optical PC cover, light uniformity, for the human eye, the optical efficiency of 95%, non-glare, high uniformity;

• using multiple high-power LED (3030) as a light source module with high thermal conductivity, low luminous decay, pure light color, no ghosting;

• High power integrated constant current drive power, wide voltage input AC90-305V, power factor> 0.95, harmonic small;

• Environment friendly, no lead, mercury and other pollution elements, no environmental pollution;

• Excellent decorative effect, using a special surface treatment process, appearance can choose a variety of colors, simple installation, easy disassembly, a wide range.















  Product Model  MY-GKD-M100-240
  Input Voltage  AC90-305V
  Freqency Range  50HZ-60HZ
  Power Factor  >0.96
  Power Efficiency  >91%
   LED Power   100W-240W
  LED Luminous Efficiency  100Lm/W
  LED Intial Flux  11000-26400LM
  LEDColor Temperature  warm light3000-3500K/White6000-6500K
  Color Rendring Index  Ra>80
  Beam Angle  120°、60°
  LED Power Supply  Waterproof drive power
  Light Design  LED lamp + reflector secondary light distribution
  Shell Material   Aluminum fins + PC
  Working Temperature  -35°C- +50°C
  IP Grade  IP65
  LED Life  50000H
  Power Iine  1.0mm² single wire
  Power Cables  Brown: L FireWire, blue: N zero line, yellow-green: G Ground
  Replace traditional light  Metal halide lamp, sodium lamp, energy saving lamps

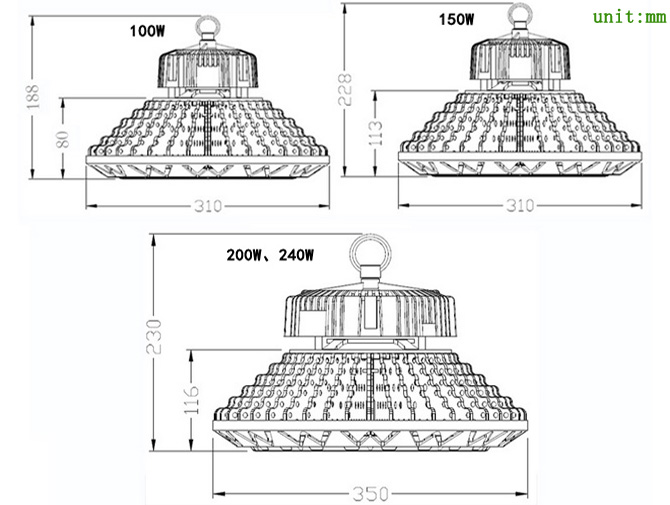

MY-GKD-M100-240 series contain: 100W, 150W, 200W, 240W, choose the right lighting power according to different places.

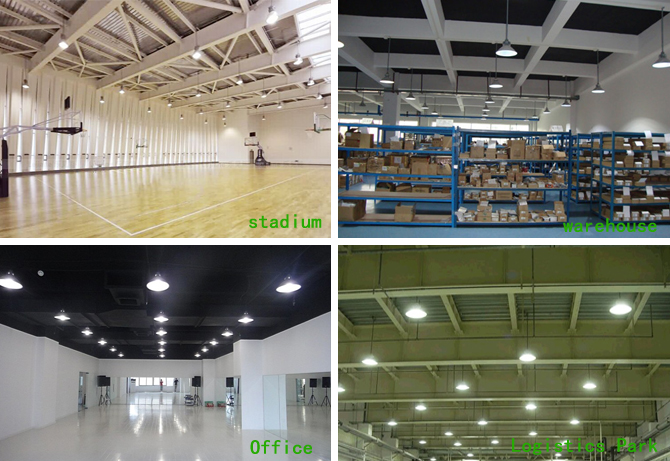

Applications: Widely used in office buildings, logistics parks, workshops, Steel plant, warehouse, highway toll stations, gas stations, shopping malls, supermarkets, exhibition halls, stadiums and other tall private room lighting.
