Product Name:
Liu fin heat pipe connected LED Bay Light 100w-500W
Model No.:
MY-GKD-F100-500
Brand:
Ming Yang lighting
Attachment download

Product Abstract:

Applications: Factory, gymnasium, lighting engineering, squares, golf courses, ships, airports, subways, commercial establishments, overpasses, outdoor advertising, landmark substandard wall panoramic lighting.

Product Description

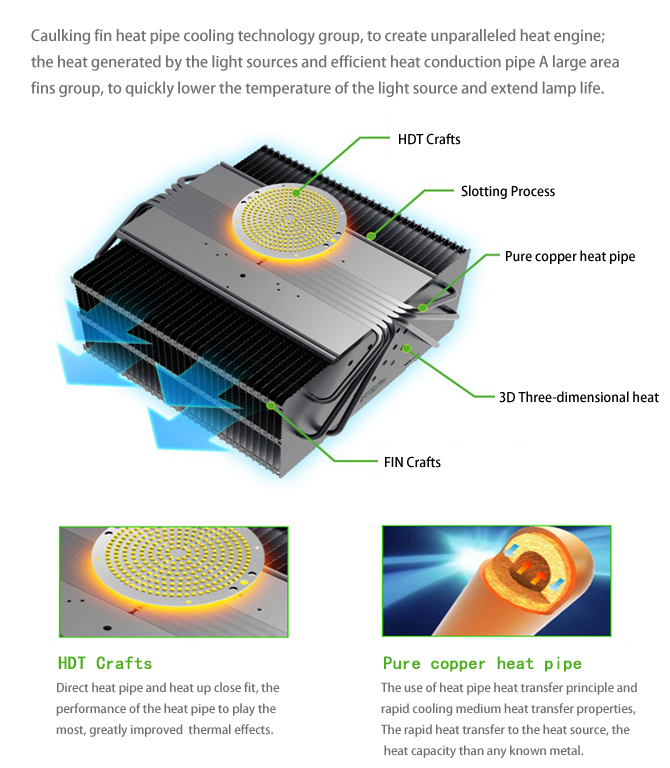

• Innovative brass cooling process, a modular cooling body composition, light and strong, to achieve maximum cooling effect with minimum weight;

• Scale High purity aluminum reflector, excellent lighting performance, 25 ° -100 ° multi-angle options to meet the professional light distribution, to adapt to different situations;

• Optical grade glass lens, light uniformity, the optical efficiency of 92%, non-glare, high uniformity, 0.5 above;

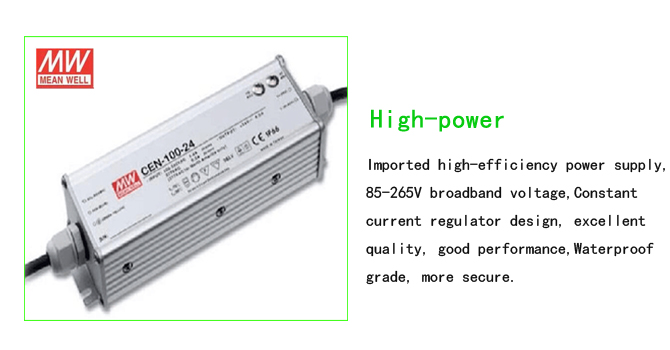

• High-power constant-current drive power, wide voltage input AC85-265V, power factor> 0.95, harmonic small;

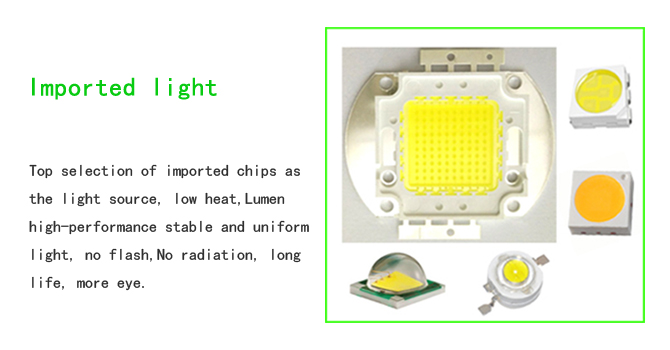

• Imported chip COB package and high lumens single high-power LED as the light source, the color is good, light stability, and close to natural light;

• the entire lighting efficiency 95-110LM / W, light body surface temperature is below 55 ℃, life of 50,000 hours.

Product Model	MY-GKD-F100-500
Input Voltage	AC85-265V
Freqency Range	50HZ-60HZ
Power Factor	>0.95
Power Efficiency	>90%
LED Power	100W、120W、150W、200W、300W、400W、500W
LED Luminous Efficiency	95-110Lm/W
LED Intial Flux	11000-55000LM
LEDColor Temperature	Warm White3000-3500K/It is white6000-6500K
Color Rendring Index	Ra>80
Beam Angle	25°、45°、60°、90°、100°
LED Power Supply	Imported waterproof drive power
Light Design	LED lamp beads + PC cover with light
Shell Material	Aviation aluminum ultra-white glass +
Working Temperature	-40°C- +50°C
IP Grade	IP65
LED Life	50000H
Power Cables	Brown: L FireWire, blue: N zero line, yellow-green: G Ground
Replace traditional light	Halide 2000W / 3000W sodium

MY-GKD-F100-500 series contain: 100W, 120W, 150W, 200W, 300W, 400W, 500W, choose the right lighting power according to different places.

Gao Peng widely used in factories, shipyards, other places need lighting mine site, crane, golf courses, buildings, docks, airports, overpasses, squares, stadiums and the like.
