Product Abstract:

Mainly used in building exterior lighting, landscape lighting, logo and indication lighting, billboard, square lighting, factory workshop, site lighting, mine lighting, stadium, stadium, warehouse, rockeries, bridges and the like.


Product Description

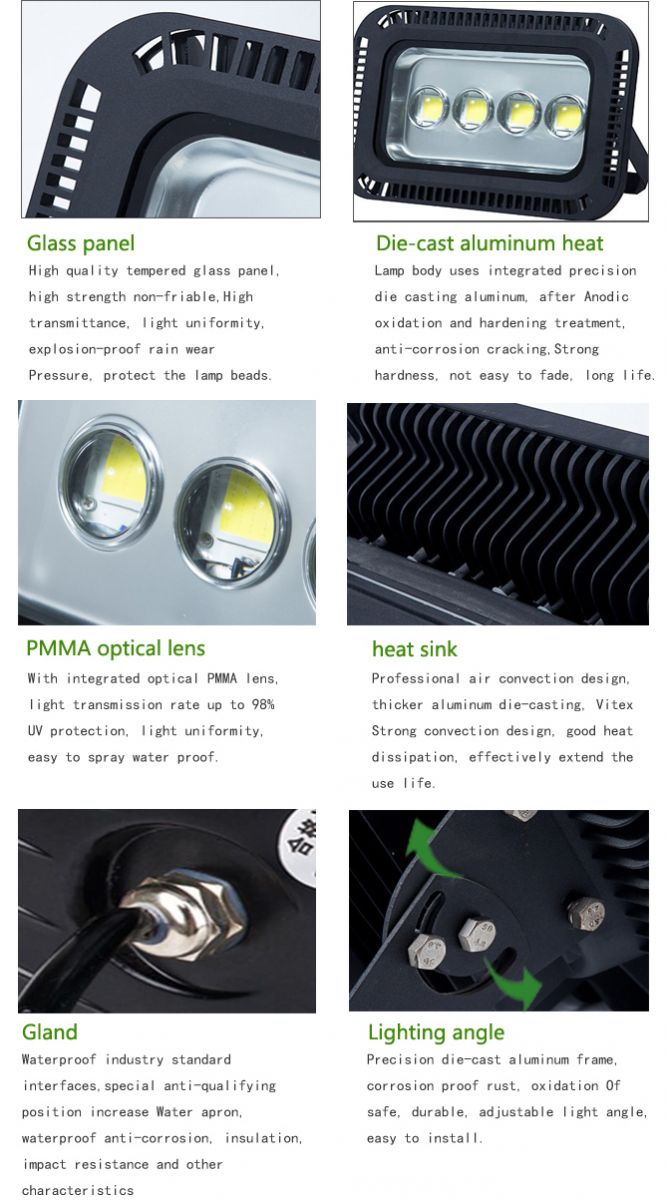

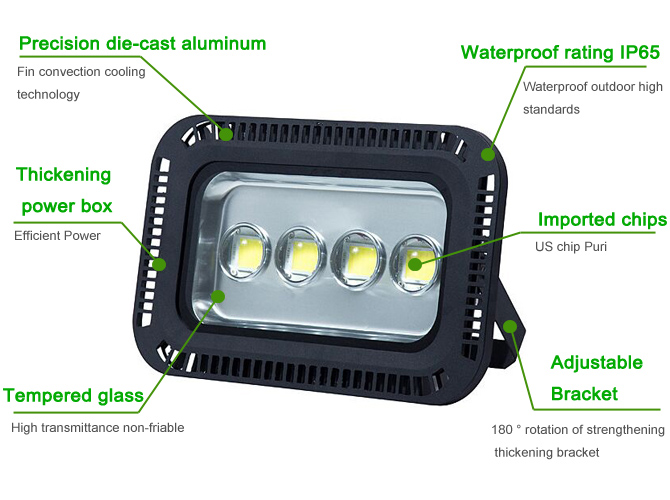

• High-density aluminum air, air flow design, cooling fins, heat more evenly, the surface anodizing, polishing, sandblasting and other processing, strong resistance to corrosion, never rust, protection class IP65;

• High-purity aluminum reflector, shiny, reflective effect, glass panels, light transmission rate of 98%, non-glare, high uniformity, high-intensity light source protection;

• High-power constant-current drive power, wide voltage input AC85-265V, power efficiency> 90%, power factor> 0.95, harmonic small;

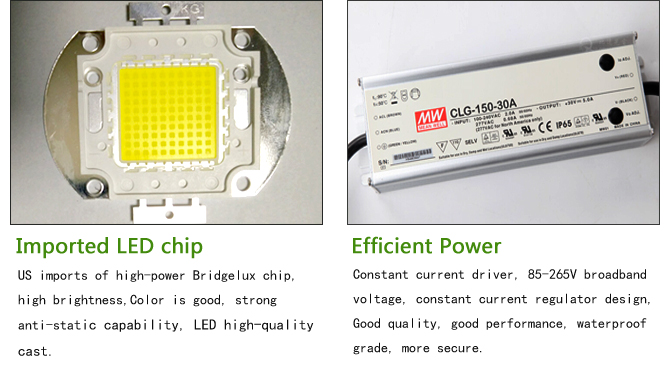

• Imported COB package and high lumen LED flip chip as the light source, color rendering index Ra≥75, good heat dissipation, light decay, high brightness, more stable;

• the entire lighting efficiency 90-110LM / W, light body surface temperature is below 55 ℃, life of 50,000 hours.







  Product Model  MY-TGD-I100-250
  Input Voltage  AC85-265V
  Freqency Range  50HZ-60HZ
 Power Factor  >0.95
  Power Efficiency  >90%
   LED Power   100W、120W、150W、180W、200W、250W
  LED Luminous Efficiency  90-110Lm/W
  LED Intial Flux  11000-27500LM
  LEDColor Temperature  3000-3500K/6000-6500K
 Color Rendring Index  Ra>75
 Beam Angle  90°
  LED Power Supply  Built-in waterproof drive power
  Light Design  LED lamp beads and glass lens with light
 Shell Material   Aviation aluminum + glass
  Lamp Size

 100W:405X335X165mm

 120W:468X373X185mm

 150W:468X373X185mm

 180W:468X373X185mm

 200W:468X373X185mm

 250W:610X385X200mm

 Working Temperature  -40°C- +50°C
 IP Grade  IP65
 LED Life  50000H
 Power Cables  Brown: L FireWire, blue: N zero line, yellow-green: G Ground















 MY-TGD-I100-250 series contain: 100W, 120W, 150W, 180W, 200W, 250W, choose the right lighting power according to different places.











Applications: used in building exterior lighting, landscape lighting, billboard, square lighting, lighting golf course, site workshop, mine stadium, rockery bridges, community gardens and other places of lighting required.
