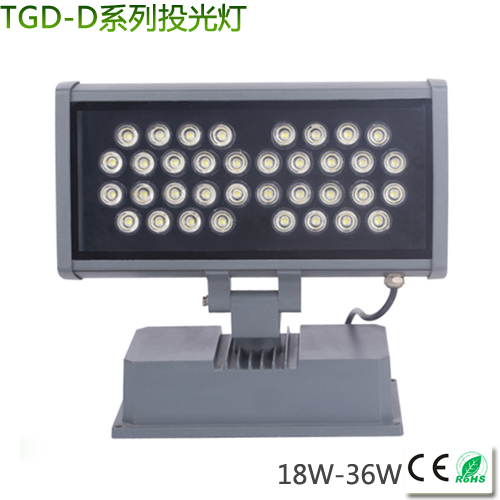

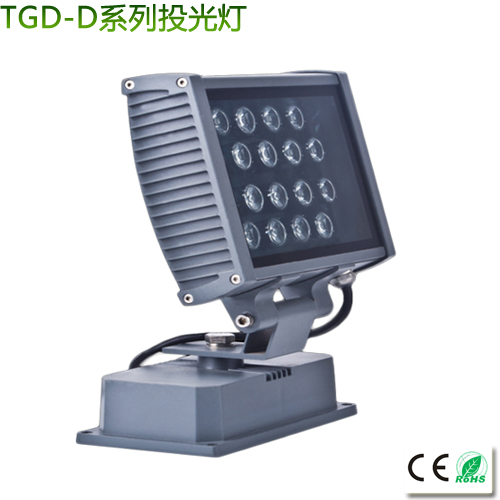

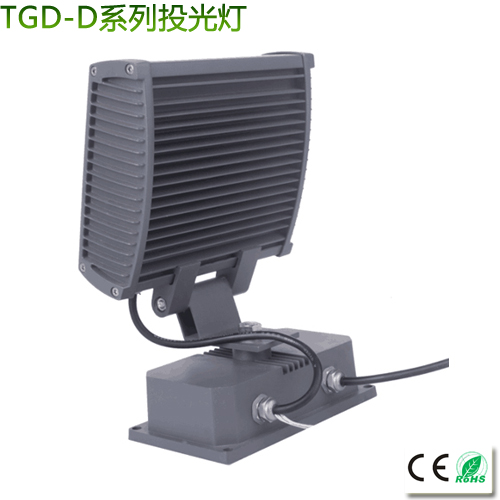

Concentrating LED flood light 18w-36W

  • High Power LED Spot Light 6-48W
  • Landscape LED Flood Light 6-36W
  • High Power LED Spot Light 15-36W
  • Concentrating LED flood light 18w-36W
  • High Power LED Spot Light 24-48W
  • High power LED flood light 100w-250W
  • COB LED flood light converging 100w-300W
  • High power LED flood light 100w-300W
  • Multiple satellites integrated LED flood light 100w-250W
  • The new condensing LED flood light 100w-250W
  • High power LED flood light 100w-250W

Product Abstract:

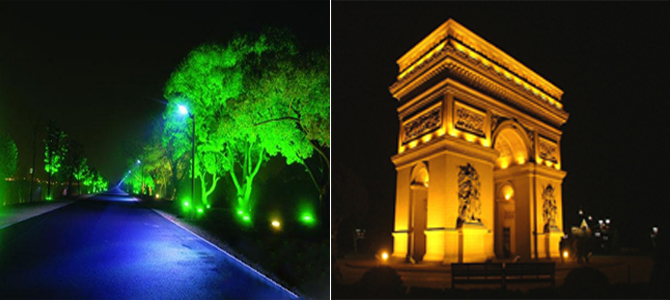

Mainly used in building exterior lighting, green landscape lighting, logo and indication lighting, billboard, bridge lighting lighting, rockery lighting, factory lighting, indoor local lighting, medical and cultural facilities.


Product Description

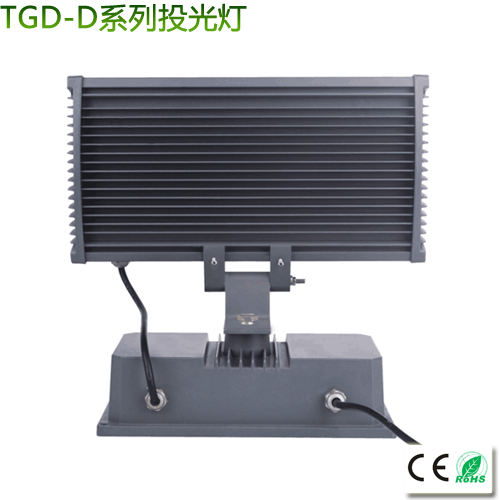

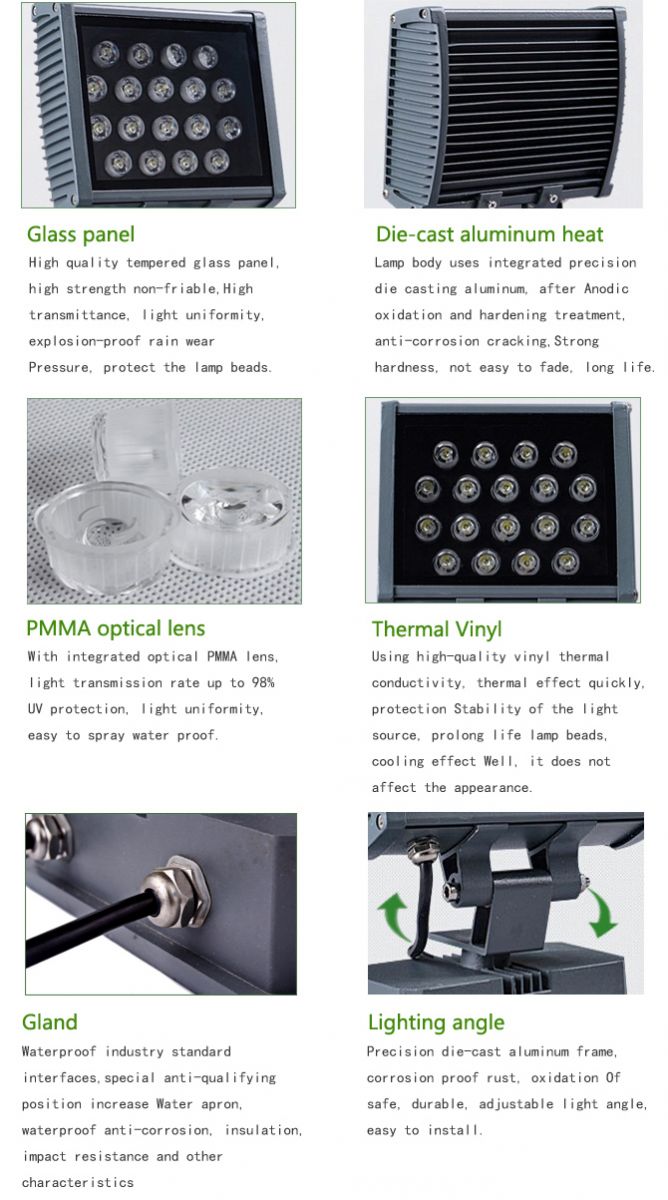

• high thermal conductivity aluminum alloy, bold Vitex convection design, cooling effect, the surface anodizing, polishing, sandblasting, corrosion never rust;

• V grade PMMA optical lens, 30 °, 45 °, 60 ° multi-angle options to meet the professional optical, glass panel, high-intensity light protection, light transmission rate of 98%, non-glare, high uniformity;

• High-power constant-current drive power, wide voltage input AC85-265V, power efficiency> 90%, power factor> 0.95, harmonic small;

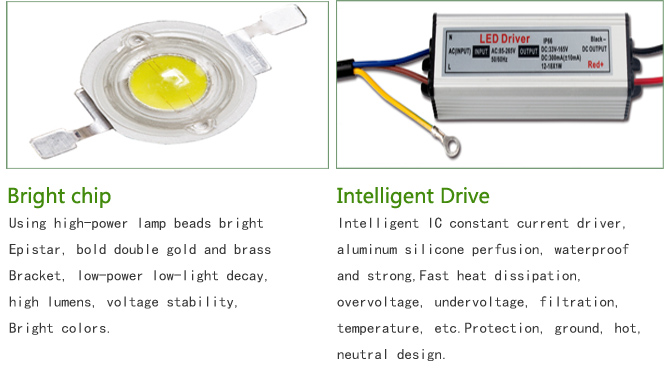

• imported high-power lamp beads, tile foot foot light, no flicker, no radiation, low light decay, long life, stable light source, light and soft;

• the entire lighting efficiency 90-110LM / W, light body surface temperature is below 55 ℃, life of 50,000 hours.











  Product Model  MY-TGD-D18-36
  Input Voltage  AC85-265V(default)   /  DC12V、24V、36V
  Freqency Range  50HZ-60HZ
  Power Factor  >0.95
  Power Efficiency  >90%
  LED Power   18W、24W、36W
  LED Luminous Efficiency  90-100Lm/W
  LED Intial Flux   1800-3600LM
 LEDColor Temperature  Warm light, white, colorful
 Color Rendring Index  Ra>75
 Beam Angle  30°、45°、60°
 LED Power Supply  Built-in waterproof drive power
 Light Design  LED lamp beads + PMMA optical lens

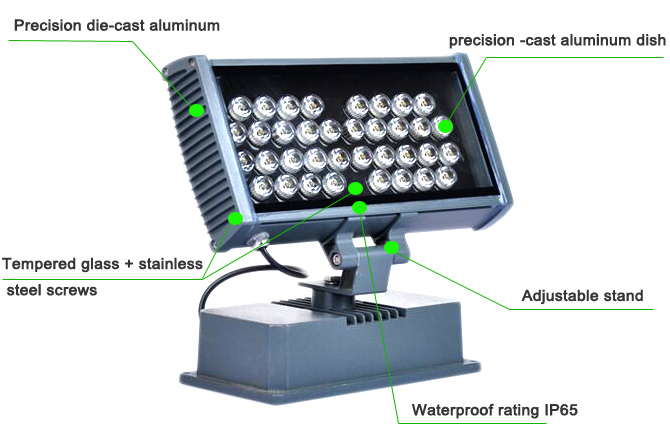

 Shell Material   Aviation aluminum + glass
 Lamp Size

 18W:192X167mm

 24W:312X167mm

 36W:312X167mm

 Working Temperature  -40°C- +50°C
 IP Grade  IP65
 LED Life  50000H
 Power Cables  Brown: L FireWire, blue: N zero line, yellow-green: G Ground

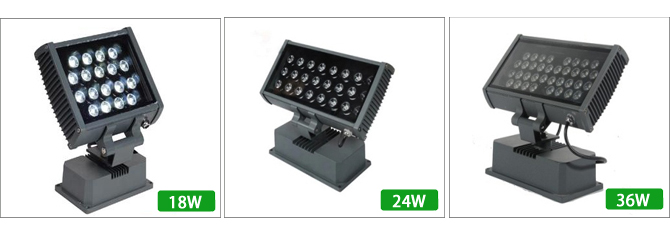

                        MY-TGD-D18-36 series contain: 18W, 24W, 36W, choose the right lighting power according to different places.







 Mainly used in building exterior lighting, green landscape lighting, logo and indication lighting, billboard, bridge lighting lighting, rockery lighting, factory lighting, indoor local lighting, medical and cultural facilities.
