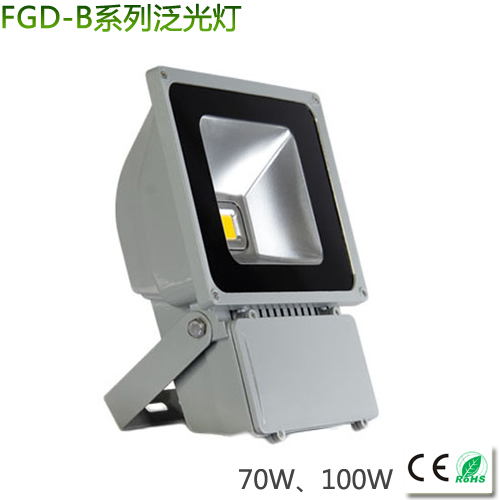

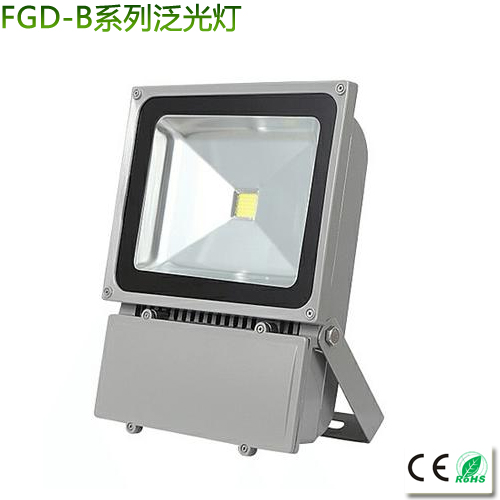

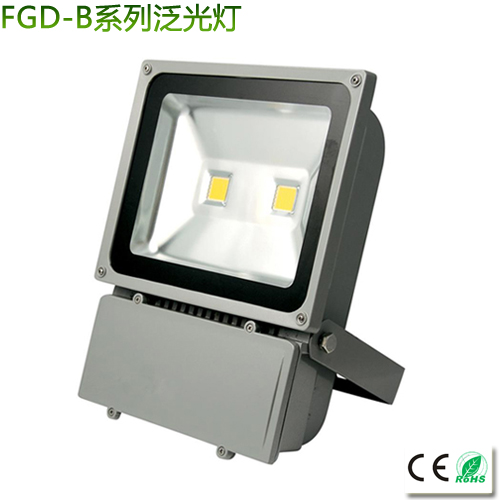

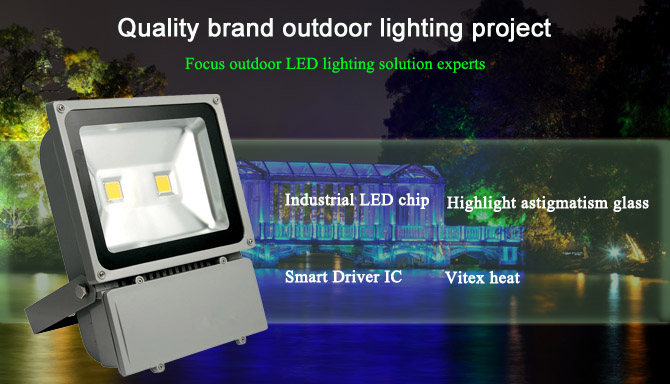

High power LED floodlight 70w-100W
Product Name:
High power LED floodlight 70w-100WModel No.:
MY-FGD-B70-100Brand:
Ming Yang lighting
Product Abstract:
Mainly used in building exterior lighting, landscape lighting, logo and indication lighting, billboard, square lighting, factory workshop, site lighting, mine lighting, stadium, stadium, warehouse, rockeries, bridges and the like.
- Product Description

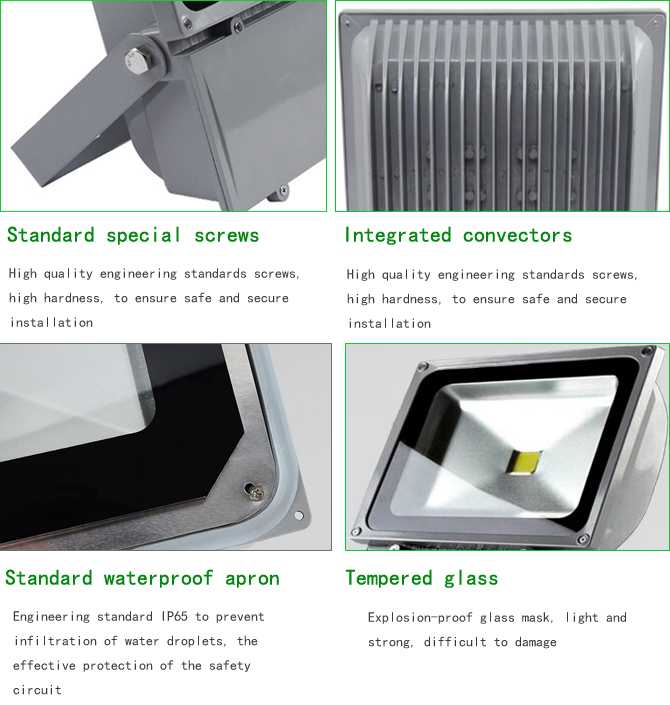

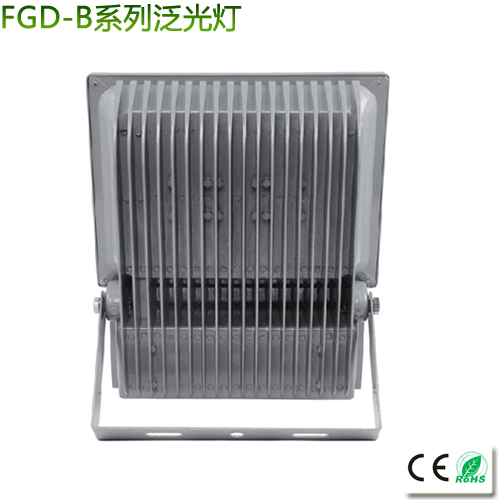

• high thermal conductivity aluminum alloy, bold Vitex convection design, cooling effect, the surface anodizing, polishing, sandblasting, corrosion never rust;
• High-purity aluminum reflector, oxidation, anti-color, reflective effect, glass panels, high-intensity light protection, light transmission rate of 98%;

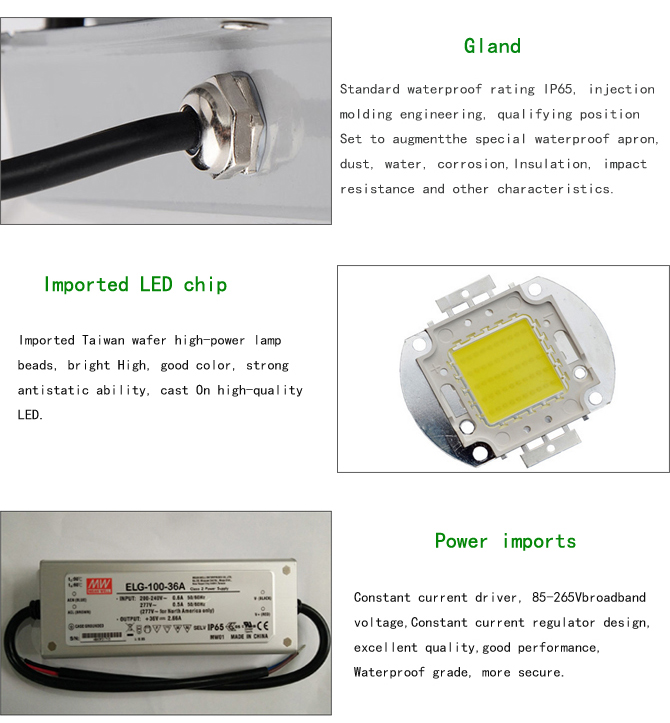

• High-power constant-current drive power, wide voltage input AC85-265V, power efficiency> 90%, power factor> 0.95, harmonic small;
• Imported chip COB package and high lumen LED flip chip as the light source, color rendering index Ra≥75, stable light source, and close to natural light;
• the entire lighting efficiency 90-110LM / W, light body surface temperature is below 55 ℃, life of 50,000 hours.
Product Model MY-FGD-B70-100 Input Voltage AC85-265V Freqency Range 50HZ-60HZ Power Factor >0.95 Power Efficiency >90% LED Power 70W、100W LED Luminous Efficiency 90-110Lm/W LED Intial Flux 7700-11000LM LEDColor Temperature 3000-3500K/6000-6500K Color Rendring Index Ra>75 Beam Angle 120° LED Power Supply Built-in waterproof drive power Light Design LED lamp beads and glass lens with light Shell Material Aviation aluminum + glass Lamp Size 70W:368X285X100mm
100W:360X287X100mm
Working Temperature -40°C- +50°C IP Grade IP65 LED Life 50000H Power Cables Brown: L FireWire, blue: N zero line, yellow-green: G Ground

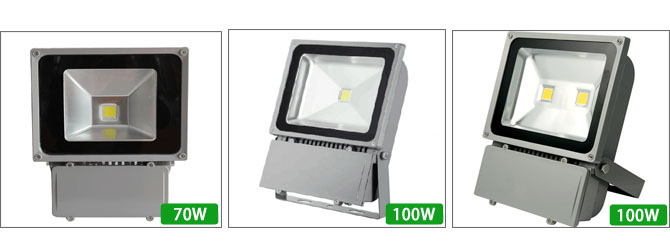

MY-FGD-B70-100 series contain: 70W, 100W, choose the right lighting power according to different places.

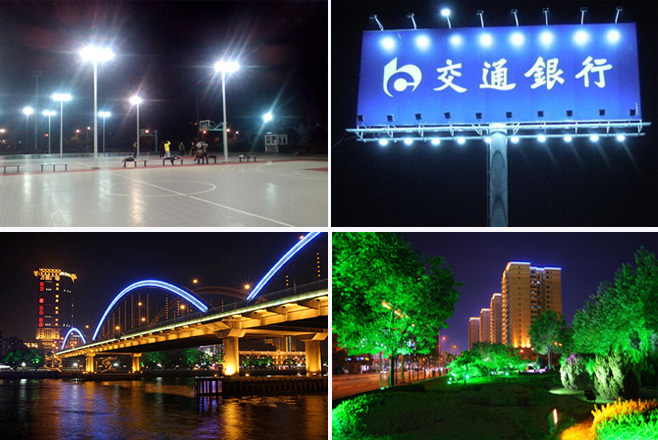

Applications: used in building exterior lighting, landscape lighting, billboard, square lighting, site workshop, mine stadium, rockery bridges, community gardens and other places lighting.
