High-power LED explosion proof lights 30-200W

  • High-power LED explosion proof lights 30-200W
  • High-power integrated LED explosion proof lights 120-200W
  • Concentrating power LED explosion proof lights 120-200W

Product Abstract:

Widely used in hazardous and explosive and other regional oil exploration, oil refining, chemical, military, marine and power; also apply to plant workshops, warehouses, logistics centers, exhibition halls, toll stations, stadiums, mines, gas stations lighting and other places.


Product Description

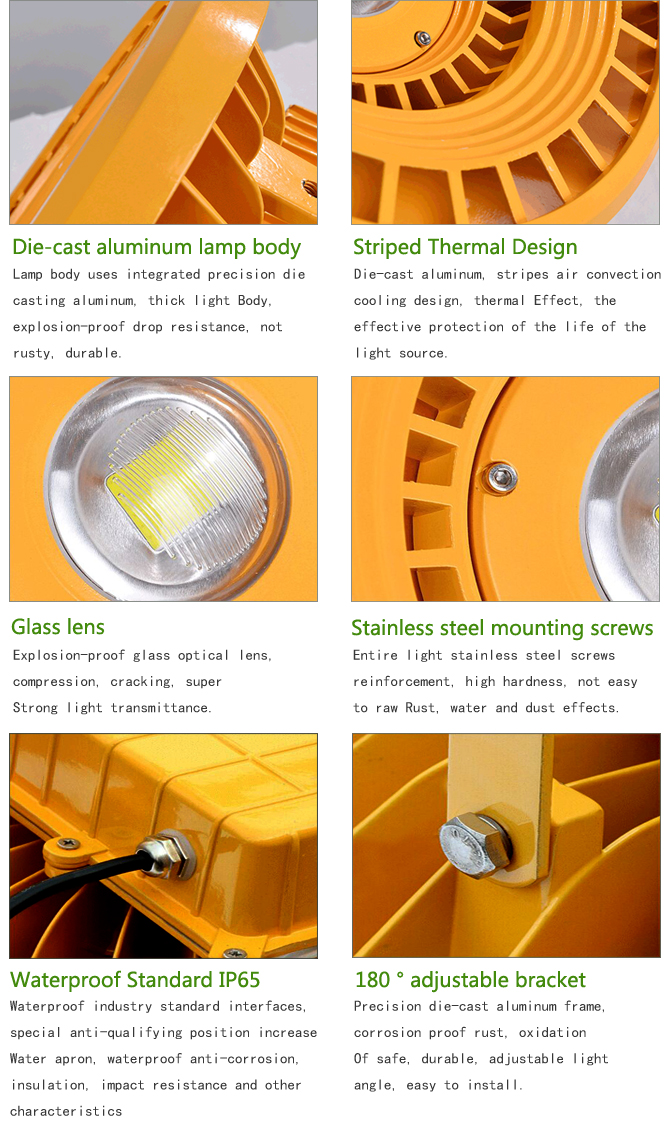

• well-designed high-strength aluminum radiator with an air convection structure, to ensure the life of the LED light source;

• independent power cavity structure, the power LED work without influence of the heat, to ensure the stability and longevity of work;

• constant current drive, with a short circuit, overvoltage protection, with excellent electromagnetic compatibility;

• Preferably imported chips, with excellent lumen maintenance and high light efficiency. Using surface mount technology to significantly improve thermal performance;

• High borosilicate glass, can withstand high energy impact. All exposed fasteners and accessories are made of high corrosion resistance of stainless steel;

• Use IIC class explosion-proof structure, and IP65 protection class, explosion protection with excellent performance;

• for wet, high protection requirements, corrosive gases and non-conductive powder.





 Product Model  MY-FBD-A30-200
 Input Voltage  AC85-265V
  Freqency Range  50HZ-60HZ
  Power Factor  >0.95
  Power Efficiency  >90%
  LED Power   30W、50W、70W、100W、120W、150W、200W
  LED Luminous Efficiency  90-110Lm/W
  LED Intial Flux  3300-22000LM
  LEDColor Temperature  3000-3500K/6000-6500K
  Color Rendring Index  Ra>75
 Beam Angle  120°
  LED Power Supply Built-in waterproof drive power
  Light Design LED lamp beads and glass lens with light
  Shell Material   High-strength aluminum + glass
  Lamp Size  30W:235X135mm

 50W:235X135mm

 70W:300X175mm

 100W:300X175mm

 120W:438X200mm

 150W:438X200mm

 200W:438X200mm

  Working Temperature  -40°C- +50°C
  IP Grade  IP65
  LED Life  50000H
  Power Cables  Brown: L FireWire, blue: N zero line, yellow-green: G Ground

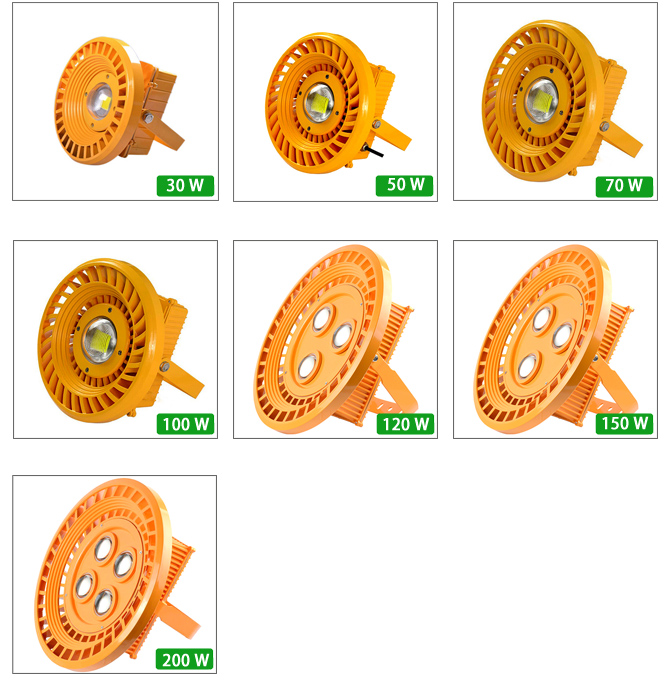

 MY-FBD-A30-200 Series contain: 30W, 50W, 70W, 100W, 120W, 150W, 200W, choose the right lighting power according to different places.









Applications: widely used in hazardous and explosive and other regional oil exploration, oil refining, chemical, military, marine and power; also apply to plant workshops, warehouses, logistics centers, exhibition halls, toll stations, stadiums, mining , construction sites, gas stations and other places of explosion-proof lighting.
