Concentrating power LED explosion proof lights 120-200W
Product Name:
Concentrating power LED explosion proof lights 120-200WModel No.:
MY-FBD-C120-200Brand:
Ming Yang lighting
Product Abstract:
Widely used in hazardous and explosive and other regional oil exploration, oil refining, chemical, military, marine and power; also apply to plant workshops, warehouses, logistics centers, exhibition halls, toll stations, stadiums, mines, gas stations lighting and other places.
- Product Description

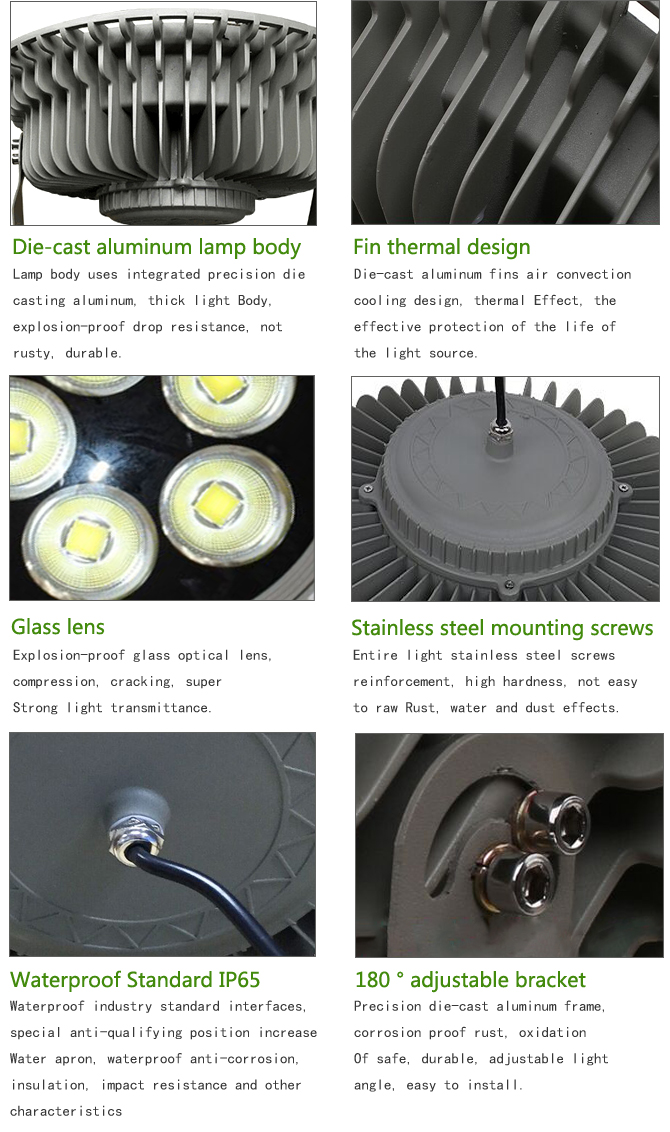

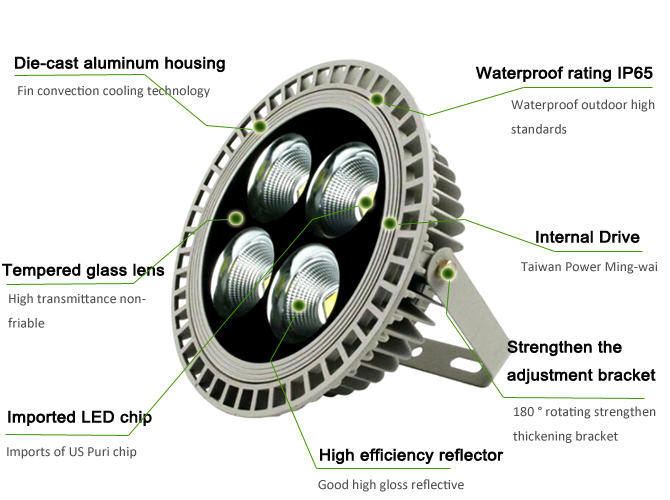

• well-designed high-strength aluminum radiator with an air convection structure, to ensure the life of the LED light source;
• independent power cavity structure, the power LED work without influence of the heat, to ensure the stability and longevity of work;
• constant current drive, with a short circuit, overvoltage protection, with excellent electromagnetic compatibility;
• Preferably imported chips, with excellent lumen maintenance and high light efficiency. Using surface mount technology to significantly improve thermal performance;
• High borosilicate glass, can withstand high energy impact. All exposed fasteners and accessories are made of high corrosion resistance of stainless steel;
• Use IIC class explosion-proof structure, and IP65 protection class, explosion protection with excellent performance;
• for wet, high protection requirements, corrosive gases and non-conductive powder.
Product Model MY-FBD-C120-200 Input Voltage AC85-265V Freqency Range 50HZ-60HZ Power Factor >0.95 Power Efficiency >90% LED Power 120W、160W、200W LED Luminous Efficiency 90-110Lm/W LED Intial Flux 13200-22000LM
LEDColor Temperature 3000-3500K/6000-6500K Color Rendring Index Ra>75 Beam Angle 120° LED Power Supply Built-in waterproof drive power Light Design LED lamp beads and glass lens with light Shell Material High-strength aluminum + glass Lamp Size 120W:310X135mm 150W:350X135mm
200W:400X135mm
Working Temperature -40°C- +50°C IP Grade IP65 LED Life 50000H Power Cables Brown: L FireWire, blue: N zero line, yellow-green: G Ground

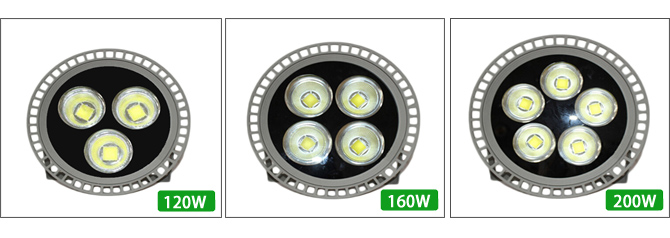

MY-FBD-C120-200 Series contain: 120W, 160W, 200W, choose the right lighting power according to different places.
Applications: widely used in hazardous and explosive and other regional oil exploration, oil refining, chemical, military, marine and power; also apply to plant workshops, warehouses, logistics centers, exhibition halls, toll stations, stadiums, mining , construction sites, gas stations and other places of explosion-proof lighting.
